TYT TH-UV8000D Dual Band Handheld Ham Radio 10W – Rechargeable

Product description

Functions for Cross-Band Repeater:

Cross-Band Repeater: It can be use as a base station for more communication

Privacy Code and Tone:

CTCSS/ DCS (it can shield the unwanted calling and also for diagnostics to determine which repeater we are hearing.)

Tri-color background light selectable:Dual band ham radio with dual display/dual watchVOX, ANI, MSK, DTMF&Remote kill/stun function1750 Tone and 128 Channels to storeFM radio receive.

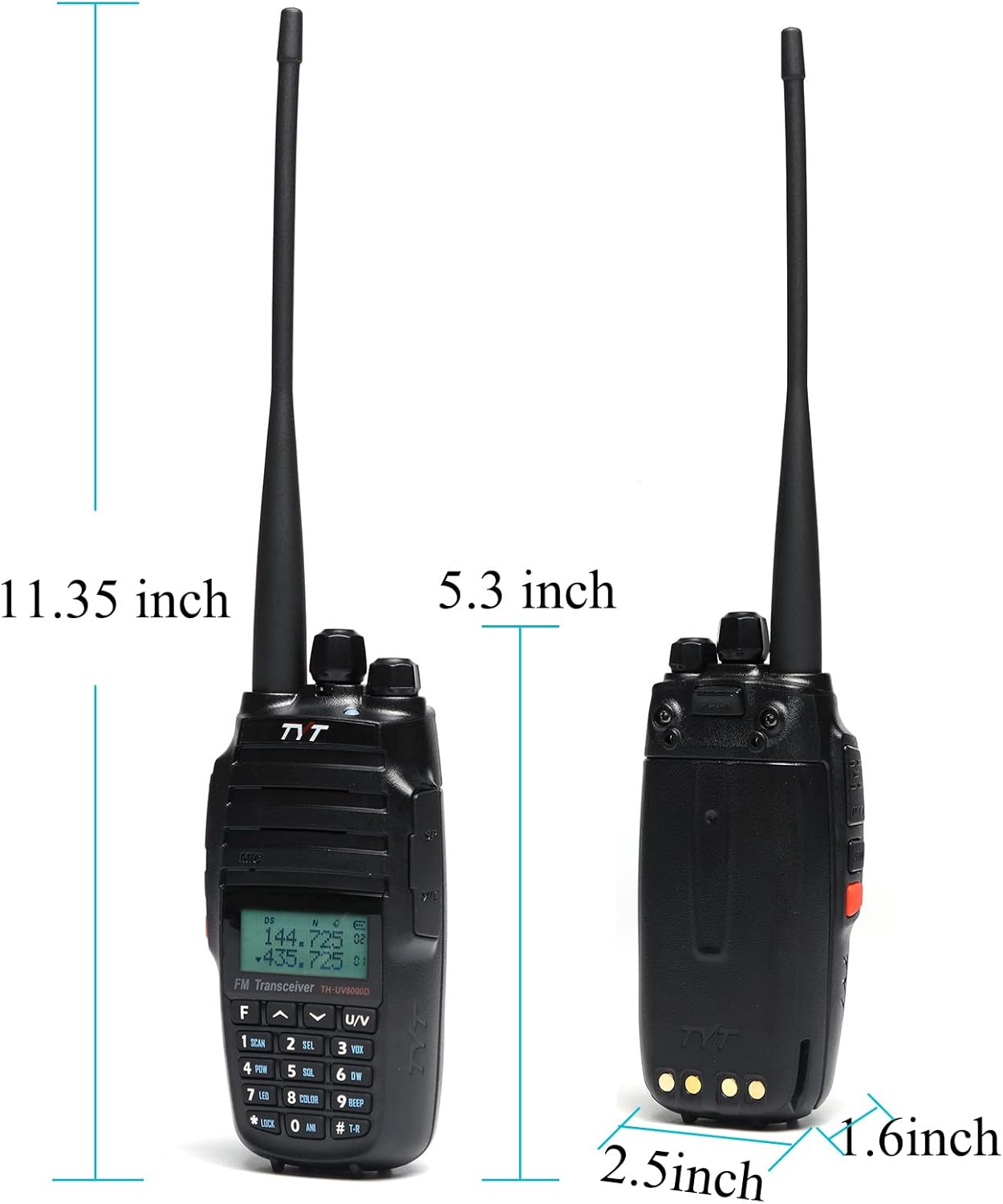

Dual Band Ham Radio: Dimension: 2.32*1.42*4.53 inchWeight: 0.59lb (main radio)Operating Voltage: 7.2V DC.Output power:10W/5WBattery Capacity: 3600mAhAntenna connector: PL-259.

TYT TH-UV8000D Ham Mobile Radio

Operation of an amateur station requires an amateur operator license grant. It is ILLEGAL to UNLOCK the radio without permission.

Frequency:

TX: VHF:144-148/ UHF: 420-450MHz,RX: VHF:136-174/ UHF: 400-520MHz.

General

Frequency Range:

TX:VHF:144-148/ UHF: 420-450MHz,

RX:VHF:136-174/ UHF: 400-520MHz.

Frequency Stability: ±2.5PPm

Operating Voltage: DC 7.2V (Rechargeable Li-ion battery)

Channel No: 128

Antenna impedance: 50Ω

Mode of operation: Simplex or semi-duplex

Battery capacity: 3600mAh

Specification Transmit

Output power:10W/5W

Modulation mode: 16kΦF3E/ 11kΦF3E

Maximum deviation: <5KHz/ <2.5KHz

Adjacent Ch. Power: ≤ -65dB/ ≤ -60dB

Spurious radiation: <7μW

Pre-emphasis characteristics: 6dB

Current: ≤ 2.8A(10W) ≤ 1.8A(5W)

CTCSS/DCS deviation: 0.55KHz±0.15KHz 0.4KHz± 0.1KHz

Intermediation sensitivity: 8-12mV

Intermediation distortion: <5%

Receive

RF Sensitivity: -122dBm (12dB SINAD)

Audio power: >0.5W

Audio distortion: <10%

Blocking: ≥85dB

Intermediation: ≥ 60dB, ≥ 55dB

Selectivity: ≥ 65dB, ≥60dB

Spurious rejection: ≥ 65dB

Frequency Range: 144-148MHz and 420-450MHz. Cross-Band Repeater Radio: Upgraded with the cross band repeater function. Cross-band repeater can by turned on or off in the radio menu (F-1-1). This is a great choice for remote work
High Power 3800mAh Ham Radio: TYT UV8000D long range ham radio comes with a large capacity battery and up to 10W high power output which is a great choice for camping, hiking, skiing and other outdoor activity
Dual Band Ham Radio with High Gain Antenna is usable for VHF and UHF, you don’t spend more to get the best TX/RX
CHIRP Compatible&Free Programming Cable: Recommended programming with CHIRP, this handheld radio supports CHIRP Next which is the newest revision.We have professionally customer service team, please feel free to contact us if you have any problem about this radio
【Multifunction Two Way Radio】Scan function; CTCSS/DCS; DTMF; FM radio receive; Tri-color background light selectable; High/ Low Power selectable; VOX function; Up to 128 memory channels
