20W LED Emergency Driver, Rechargeable Backup for Dimmable Fixtures

Product description

EMERGENCY LED DRIVER- COMPATIABLE WITH 20-150W LED LIGHT FIXTURES WITH 0-10V DIMMABLE

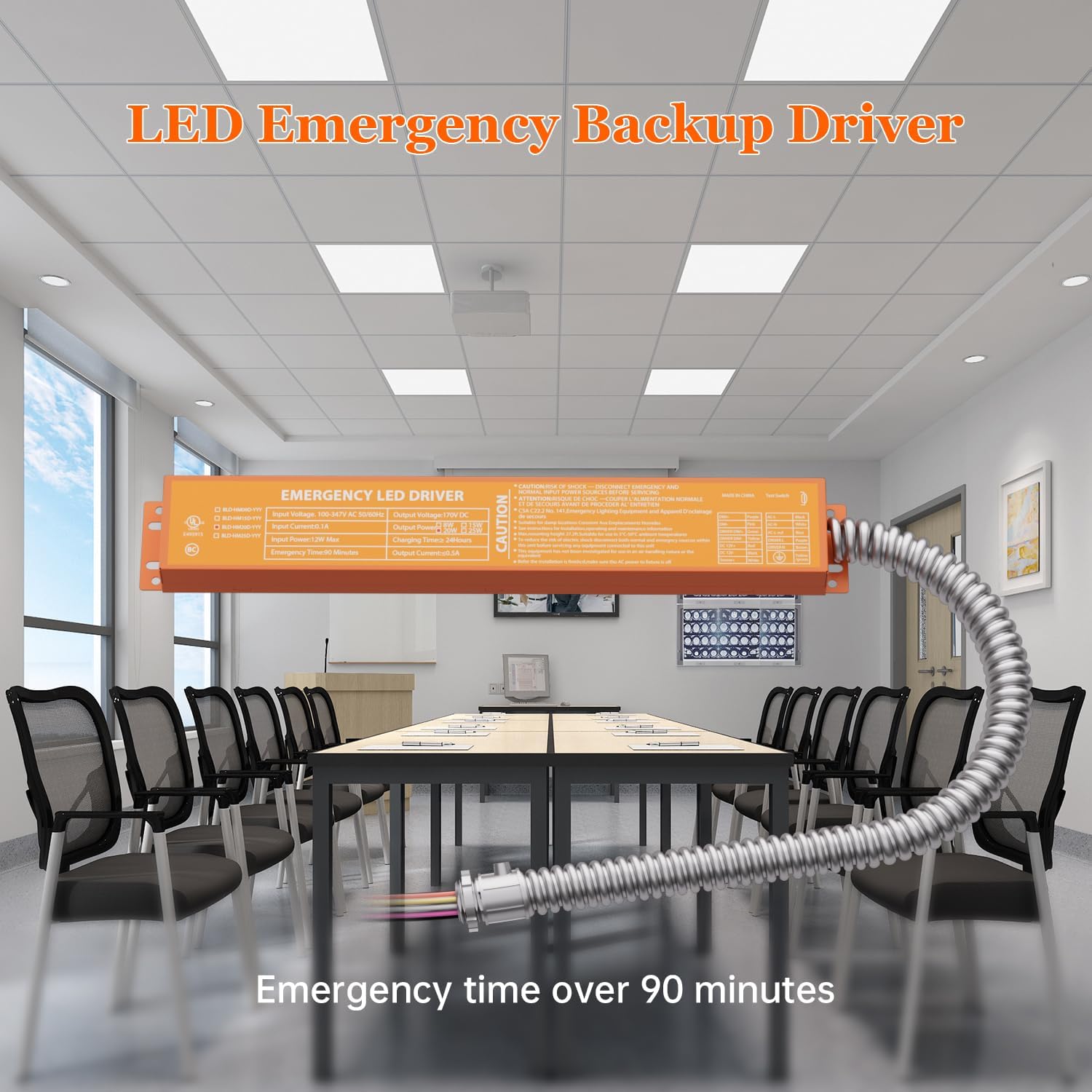

20W LED EMERGENCY Driver

LED emergency backup driver operates on 100-347VAC, 50/60Hz, the output voltage is 170Vdc.Buit in battery, the 20W emergency LED driver provides over 90 minutes backup lighting during power outage after 24hrs fully charged.This battery backup driver is suitable for LED lights with 0-10V dimmable function, it can be applied to input power higher than 20W but less than 150W, such as LED panel, LED linear, downlights, etc. Aslo suitable for LED lights that less than 20W without dimming function.

20W Emergency LED Driver Installation Instruction

Widly Applications

Commercial: Supermarkets, Office building, Factory, Hotels, Parking lots, Schools, Hospitals, Metros, Bus stations and Airports Public places etc.Residential: Apartment, Dinning room, Corridors and Stairs etc.

Product Dimensions ‏ : ‎ 12 x 6 x 2 inches; 1.52 Pounds
Item model number ‏ : ‎ BLD-HM20D-YYY
Batteries ‏ : ‎ 1 Lithium Ion batteries required. (included)
Date First Available ‏ : ‎ September 23, 2024
Manufacturer ‏ : ‎ dephen
ASIN ‏ : ‎ B0DHTHSP41
Customer Reviews: 4.7 4.7 out of 5 stars (7) var dpAcrHasRegisteredArcLinkClickAction; P.when(‘A’, ‘ready’).execute(function(A) { if (dpAcrHasRegisteredArcLinkClickAction !== true) { dpAcrHasRegisteredArcLinkClickAction = true; A.declarative( ‘acrLink-click-metrics’, ‘click’, { “allowLinkDefault”: true }, function (event) { if (window.ue) { ue.count(“acrLinkClickCount”, (ue.count(“acrLinkClickCount”) || 0) + 1); } } ); } }); P.when(‘A’, ‘cf’).execute(function(A) { A.declarative(‘acrStarsLink-click-metrics’, ‘click’, { “allowLinkDefault” : true }, function(event){ if(window.ue) { ue.count(“acrStarsLinkWithPopoverClickCount”, (ue.count(“acrStarsLinkWithPopoverClickCount”) || 0) + 1); } }); });
UL Certification: This 20W LED emergency driver owns UL-listed, providing safety and reliable assurance for your lighting fixtures.
Emergency Mode: The battery backup driver provides at least 90 minutes of emergency lighting when power failure after 24hrs fully charged.
Compatibility: The emergency LED driver operate with 20-150W(0-10V dimmable) Fixture and less than 20W LED Lamps without dimming function.
Specification: Our emergency backup battery driver input voltage is 100-347VAC,50/60Hz, output voltage 170V DC; Input power 12W, output power 20W.
Wide Application: This 20W emergency backup drivers is suitable for less than 155W light with internal driver, like led Vapor Tight, downlight, panels,linear high bay, warp,troffer lighting fixtures.
