Digital Car Inclinometer & GPS Speedometer for Off-Road Vehicles

Product description

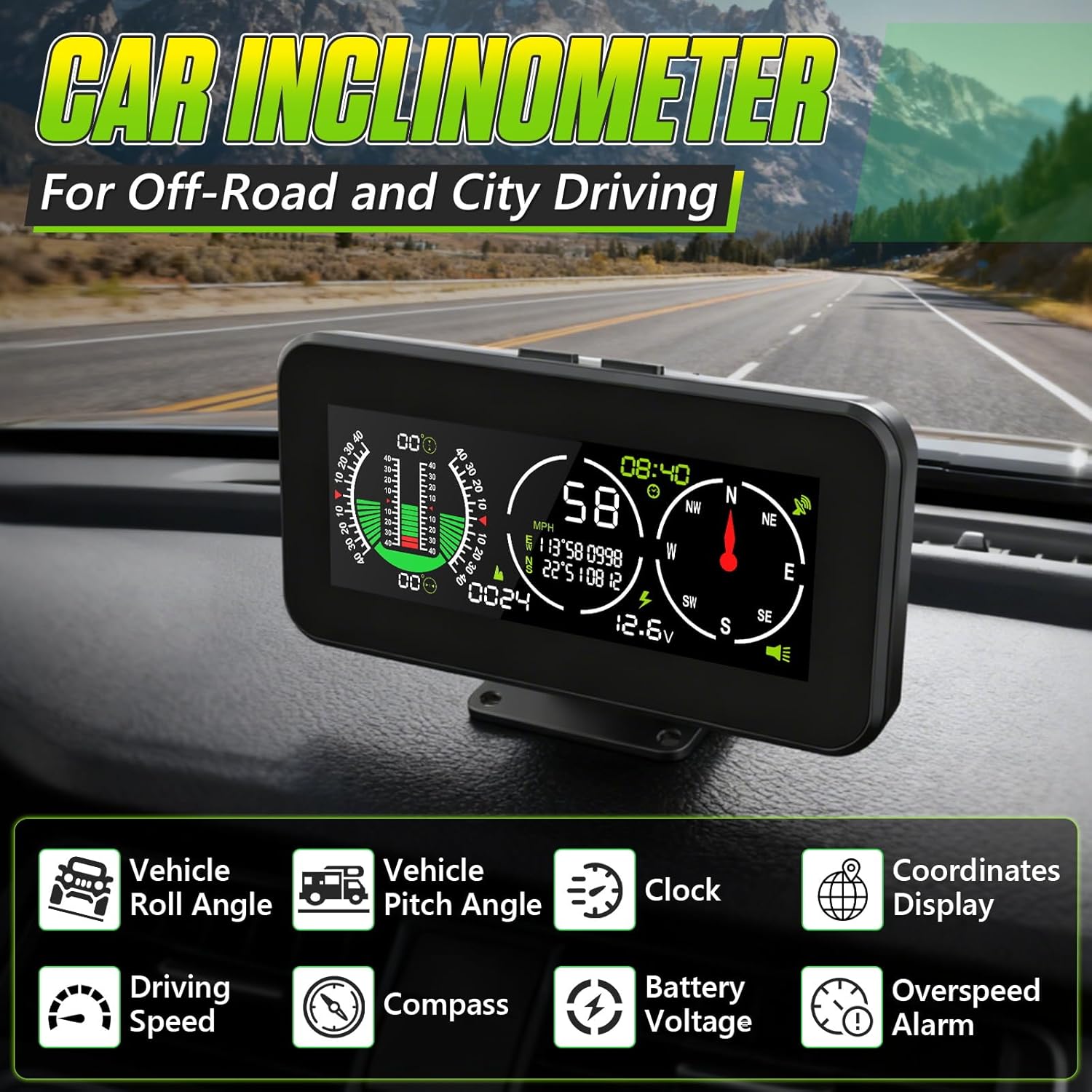

The BELEY Inclinometer Off-Road M60 empowers your journey with critical real-time data. Leveraging a built-in multi-axis gyroscope and GPS system, it accurately tracks:

1.Vehicle Pitch & Roll Angles 2.Driving Speed & Altitude 3.Travel Direction 4.This essential information significantly boosts off-road safety and control. The included freely rotating stand mount ensures perfect visibility at any angle.

Pitch Angle:

Continuously monitors the vehicle’s pitch angle (front-to-back tilt) while driving. The measurement range is ±40°.

Roll Angle:

Continuously monitors the vehicle’s roll angle (side-to-side tilt) while driving. The measurement range is ±40°.

Safety Alarm Prompts:

If the vehicle’s pitch or roll exceeds the default safety value, the device triggers an immediate audio “beep” alert to warn the driver.

How to set up and calibrate M60?

Press the function button (about 3-5s) to enter the function menu, short press to adjust the parameters (+/-), then press the on/off button (5s) to save and exit.

NORMAL MODE

1.Left Button

short press: adjust brightness

press and hold press for 3-5s: enter the function menu

2.Right Button

short press: reset the pitch and roll angle

press and hold press for 2s: turn off the sound

press and hold press for 5s: on/off

SETTING MODE Left Button short press: “-” press and hold press for 3s: skip to the next menu setting Right Button short press: “+” press and hold press for 3s: exit and save the settings

PRODUCT LIST

1*Main Unit:Car Inclinometer

1*Cigarette Lighter Power Cable

1*Refitted Power Cable

1*User Manual

1*Holder

1*Package

SPECIFICATION

Power supply: DC 10-30V

Operating temperature: -40 – 80 Celsius degree

Speed accuracy: <0.36Km/h

GPS data refresh rate: 1s

GPS hot start: 1s (AVG)

GPS cold start: 32s (AVG)

Wireless transmission frequency: 2.4GHz

Size: 127 x 30 x 60mm / 5 x 1.18 x 2.36inch

Weight: 230g

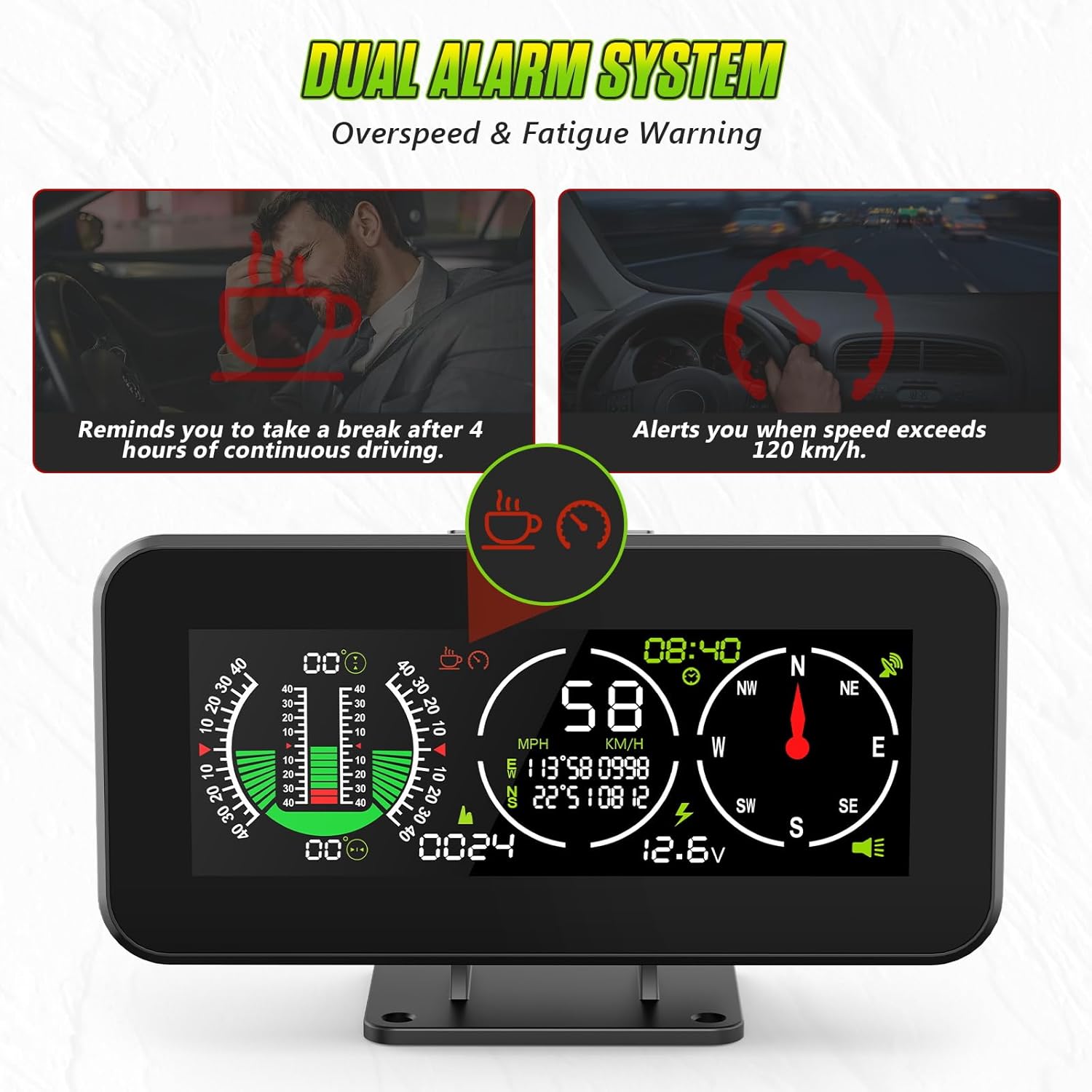

【All-in-One Multi-Function Display】Features a high-definition LCD that shows speed, tilt angle (roll & pitch), battery voltage, satellite time, compass, altitude, and coordinates—all on one screen. Equipped with a 6-axis gyroscope for highly accurate readings and speed/fatigue driving alerts to enhance driving awareness.
【Smart Safety Alerts for Confident Driving】Stay protected with real-time warnings for excessive tilt angles (adjustable up to ±20° or 40°) and speeding. Audible alarms help prevent risky situations, whether you’re off-roading or driving at high speeds, ensuring safety for both driver and passengers.
【Easy Installation & Fully Customizable Settings】Get set up quickly with included power cables, adhesive tape, and a rotatable mount. Intuitive controls let you calibrate tilt angles, adjust speed alarm ranges, set time compensation, and switch between KMH/MPH—all via a user-friendly interface.
【Clear Display, Day and Night】Designed for all lighting conditions, the HUD supports both day and night viewing modes. Enjoy crisp, easy-to-read data no matter the time of day, with automatic brightness adaptation for optimal visibility.
【Wide Compatibility 】Compatible with most cars, SUVs, trucks, and 4x4s. Features a built-in GPS module for real-time vehicle monitoring.
