BTECH UV-25X2 25W Dual Band Mobile Radio: VHF & UHF Ham Transceiver

Product description

UV-25X2 (Second Generation) 25W Mobile Two Way Radio

Second Generation

The UV-25X2 is a reliable and powerful mobile two-way radio with new functionality improvements. The second generation release of the UV-25X2 has seen several performance improvements and tweaks, making it an excellent choice for communication needs.

RJ45 Audio Input & Output

The UV-25X2 has new menus and operations that allow audio I/O from its RJ45 microphone port. This allows the UV-25X2 to be installed for custom applications, where users want more control on where the speaker and mic audio is routed to.

VOX Handsfree Support

The UV-25X2 (Second Generation) includes VOX support. VOX allows for handsfree use with your favorite audio accessories or the included handheld microphone.

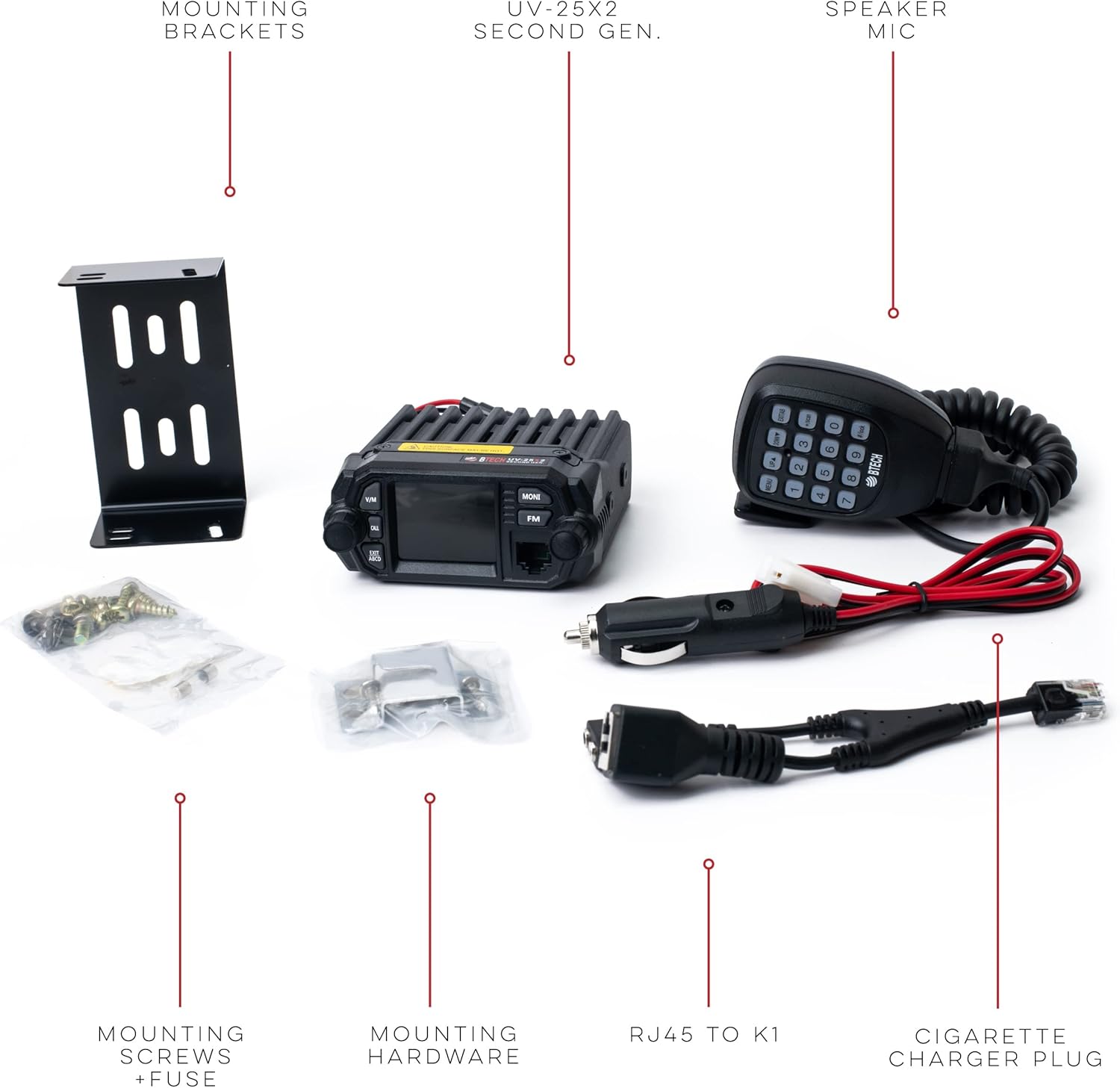

In the Box: UV-25X2 Mobile Radio DTMF Handheld Microphone Vehicle Cigarette Connector Power Cable (4.5′) Vehicle Mounting Bracket Screws & Mounting Hardware Easy-to-read Manual (written in the US) RJ-45 to Kenwood K1 Accessory Adaptor

BTECH Radios are not like other similar looking radios. BTECH radios are designed in the USA with custom firmware and internal hardware differences. BTECH radios are backed with a full US support. A BTECH label means you are getting the best radio available! A few of our highlighted differences are below:

BTECH radios use an upgraded Power ChipsetCustomizable PTT Return Times: When handling multiple conversations, the radio allows users to customize if the radio automatically switches to respond to active channels, or allow the user to set one channel default to transmit on.Dual Synchronize Display Mode: Synchronize Up to 2 Channels – and display both their channel name and channel frequency!Microphone Audio Gain Settings: Sound great and customize your microphone output for any repeaterExpanded Frequency Range SupportAuto Power Off Function: Save your battery and prevent unnecessary power drainingChannel Mode Editing Settings: Edit saved memory channels on-the-fly; our radio does not require you to delete a channel to make changesNew Scanning Modes: Auto Scan (Scan with a power reboot), Scanning Resume, and Variable Frequency ScanningQuad Watch Delay Time: Allows the receiver to stay on the secondary channel longer after incoming transmission – customize the delay up to 50 seconds; This avoids manually channel switching when you are engaged with simultaneous contacts on two frequenciesRandomization Privacy Mode

RJ45 to K1 Audio Adaptor

The UV-25X2 also includes a RJ45 to K1 Audio Adaptor, allowing you to use K1 audio accessories from our BTECH handheld radios with your mobile radio!

The radio includes special menus to allow audio to be routed both through the UV-25X2 and K1 accessory, only through the radio, or only through the K1 audio accessory.

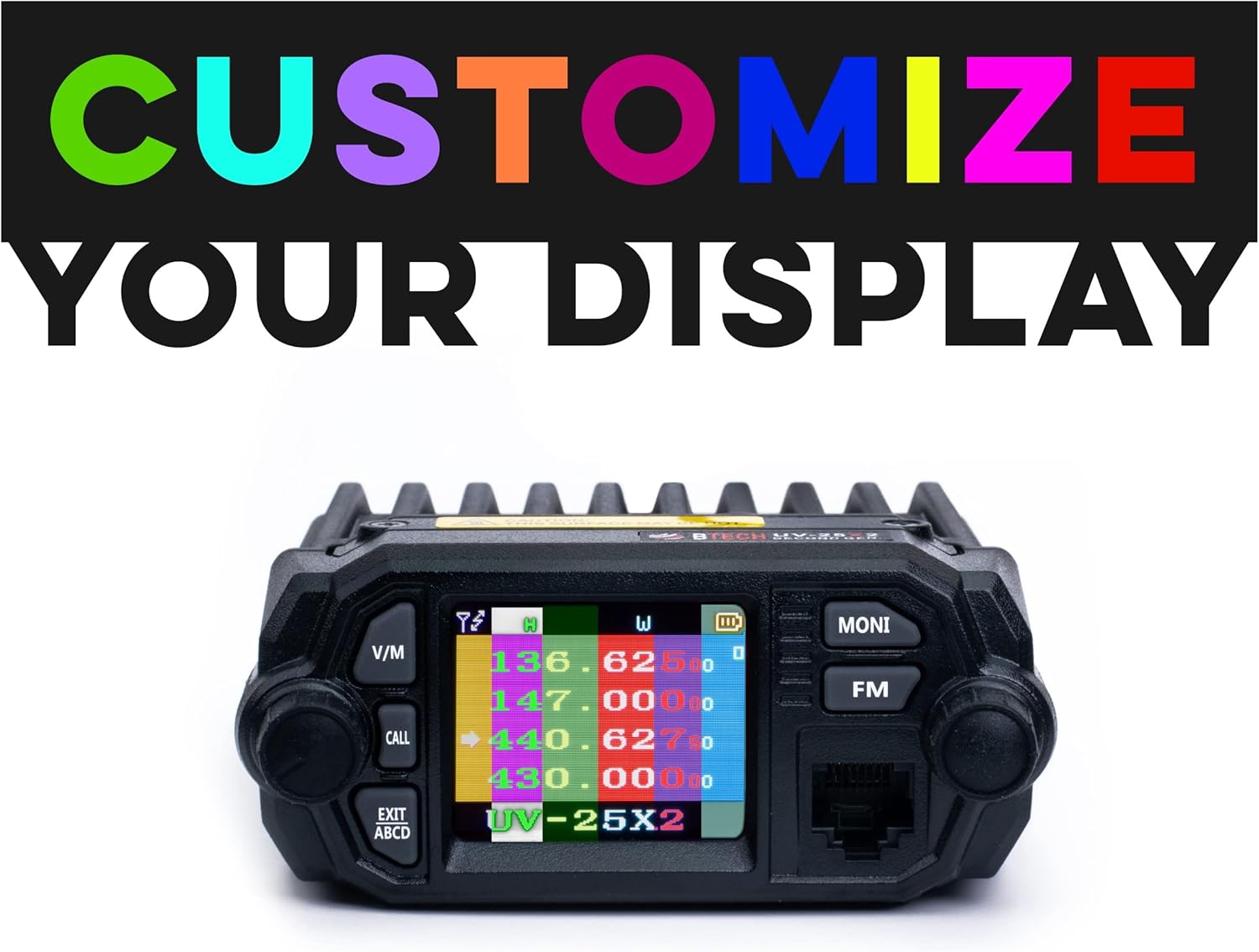

Uniquely customize your UV-25X2

The X-Series Mobiles use our Multi-Color LCD display screen. You can adjust the complete display colors to be exactly as you want it. Beyond the display, you can fully customize your channels to display their alpha-numeric names or frequency settings.

There are 128 programmable memory channels. You can add or remove channels from scanning list. You can easily program from a PC or right on the radio itself.

Pair the UV-25X2 with the Nagoya UT-72 Magnetic Mount Antenna for easy installation with the UHF antenna connectors.

Group Tones supported

The UV-25X2 supports the most common Analog Tones. It supports CTCSS, DCS, 2Tone, 5Tone, and DTMF calling methods. Set-up your calling methods to call by group tones. Tone calling (private line) is required by most repeater applications and the UV-25X2 supports the latest standards.

The UV-25X2 can even send DTMF tones. This allows for sending ANI (Caller ID) or remote commands that require DTMF tones; or it can receive incoming DTMF tones to allow for remote stun or kill commands

Quad Watch and Display Sync

The UV-25X2 operates as multiple radios in one, with either VHF or UHF as the ‘Main’ band, while simultaneously watching up to 3 other frequencies or channels; and, if you like, you can configure your UV-25X2 for simultaneous VHF-VHF or UHF-UHF operation, too!

Dual Sync Display:

With Dual Sync Display, you can synchronize channel lines to one or two channels. This allows you to sync display ‘lines’ to a single channel allowing the user to have both frequency and channel name data displayed simultaneously.

Technical Specifications

Bands Supported VHF & UHF Dual Band Radio Memory Channel 200 Channels Output power VHF: 25W (Peak), 20W (AVG) / Low: 10W; UHF: 20W (Peak) 15W (AVG) / Low: 7W Tone Support CTCSS, DCS, 5TONE, 2TONE, DTMF Accessory Jack TRRS Speaker Output In Rear, RJ45 Audio Output in Front, K1 Accessories support with included Adaptor Additional Features Display Sync, Nuisance Channel Scan Skip, SOS Alarm, NOAA Weather Channels, Transmit Time-Out, Busy Channel Lockout, DTMF Keypad, Adjustable Scanning Modes, Quad Watch, Adjustable Squelch Size 3.85 (w) x 1.83 (h) x 4.65 (d) in Weight .9lb Antenna Jack UHF (SO239 Connector) Frequency Range FM: 87.5-108 MHz; VHF: 136-174 MHz; UHF: 400-520 MHz

UV-25X2: SECOND GEN.

BTECH: We are proud to be here in the USA

BTECH radios are designed and supported right here in the USA. A BTECH label means you are getting a radio with real US based support, and development! If you ever have an issue, our team will be prompt, knowledgeable, and supportive to ensure your radio operates exactly as it should.

BTECH UV-25X2 VHF/UHF Dual Band Radio

Second Generation

Common Questions and Answers:

Q: What is the product support? A: If you have any issues or concerns, reach out to our support team, who will be happy to assist with any setup issues. The UV-25X2 includes support against any manufacturing defects for a full year. Q: Is it compatible with other analog radios. A: It will support 99% of analog systems. The UV-25X2 supports all CTCSS, DCS, 5TONE, 2TONE, and DTMF call tones used by a majority of analog radio systems. Q: What is the maximum range? A: Range varies on topography: Repeater Use: Up to 100 miles | Hill to Valley: 36 miles | Open Flat Terrain: 3-5 miles | Urban/Outside Buildings: ~1 mile

Upgraded Audio I/O Support: The UV-25X2 now features audio input/output capabilities via its RJ45 microphone port, and includes a K1 audio adapter. With the widely compatible K1 accessory jack, you’ll have access to an extensive range of aftermarket audio accessories to suit your radio usage preferences.
Easy Installation and Versatile Use: The UV-25X2 comes with all necessary mounting hardware for seamless integration into any vehicle. Transform it into a home or office base station with the optional RPS-30M power supply (sold separately).
Recommended Accessories for Optimal Performance: Enhance your UV-25X2 experience with the Nagoya UT-72 Magnetic Mount Antenna for simple installation, and the PC04 FTDI Cable for effortless computer programming.
Multi-Band Functionality: Operate the UV-25X2 as multiple radios in one, using either 144 MHz or 430 MHz as the primary TX/RX band, while simultaneously monitoring up to 3 other frequencies or channels. Configure your device for VHF-VHF or UHF-UHF operation as needed.
Comprehensive Kit: Your purchase includes the BTECH UV-25X2, RJ45 to K1 Audio Adapter, Speaker Mic, DC Cable, Radio & Mic Brackets, Mounting Hardware, and a User Guide to help you get started.
