BAOFENG UV-5RM PLUS GPS Handheld Ham Radio, 10W Long-Range, NOAA FM

Product description

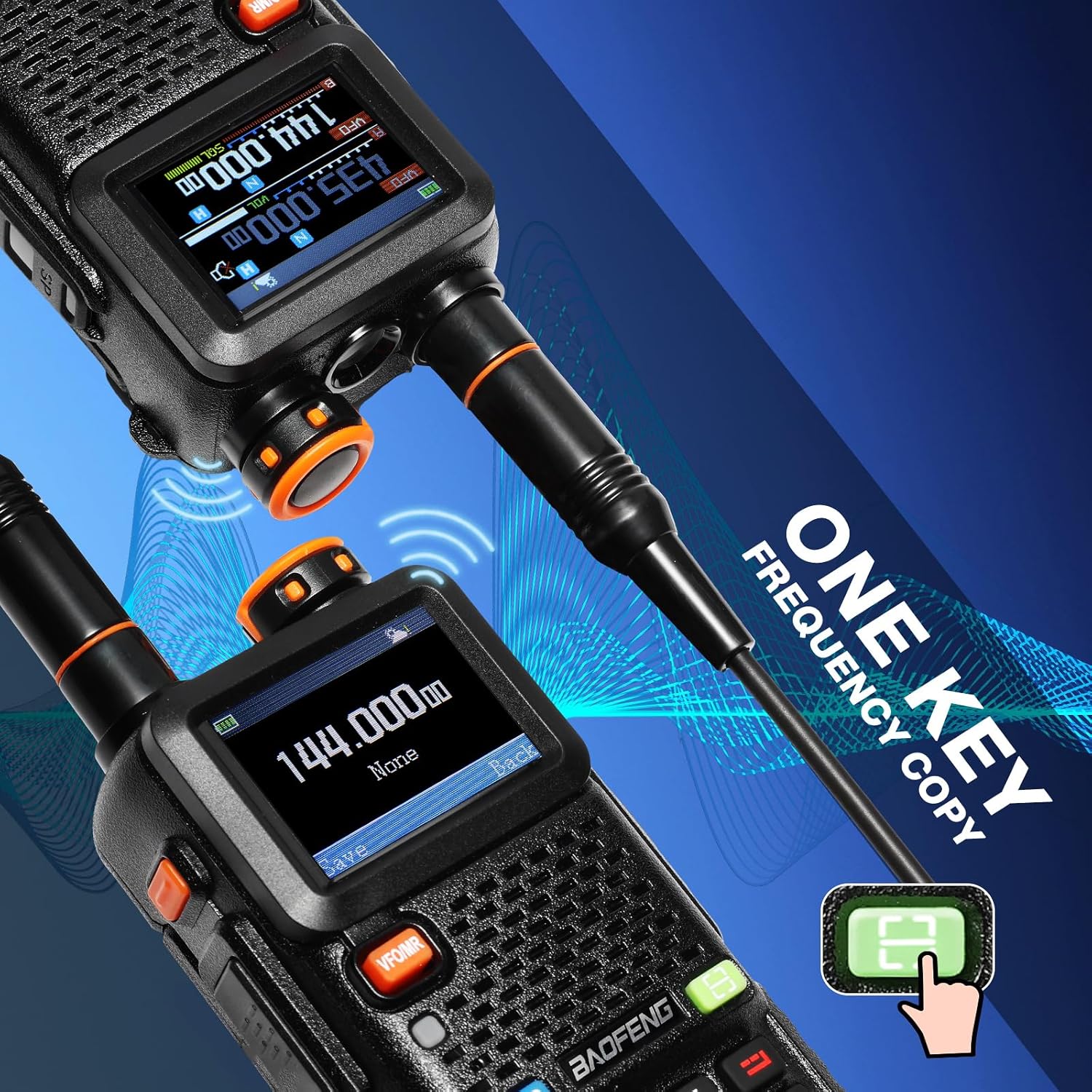

Smart Frequency Copy

Streamline setup with one-key frequency cloning—simply press the [scan] key to copy frequencies between devices. For optimal performance, keep a 1-meter distance between devices to ensure precise scanning

Optimized Scanning

Quickly scan zones, frequencies, and CTCSS/DCS codes for instant access to active channels, ensuring uninterrupted communication while saving time and boosting efficiency in dynamic environments

640 Memory Channels, 10 Zones

Manage complex communications effortlessly with up to 640 channels across 10 customizable zones. allowing you to easily tailor your communication needs with flexible channel management

Aviation Frequencies Receiving

Stay informed with real-time communications from aircraft and air traffic control, providing essential updates and enhancing situational awareness to keep you prepared and safe during any journey or outdoor activity.

Note: In VFO mode only

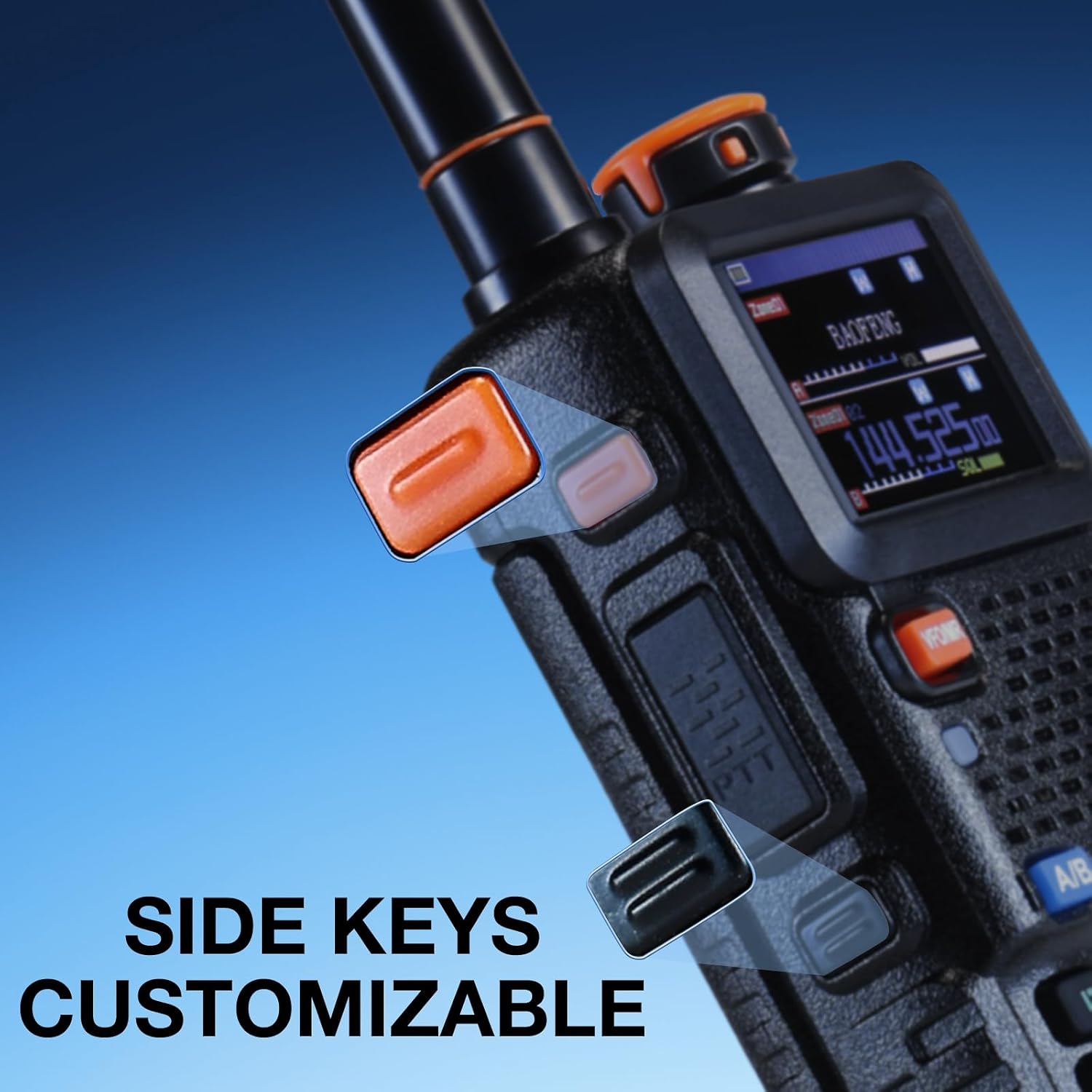

Customizable Side Keys

Personalize the SK1 and SK2 keys to suit your needs, with options like scan, monitor, FM, TX power, 1750Hz, SOS, VOX, and more. Enhance convenience and efficiency in your operations

Versatile Charging Options

Equipped with a Type-C charging port, this radio can be recharged from anywhere and anytime using various power sources such as a wall socket, power bank, car charger, or laptop, ensuring continuous communication

Frequently Asked Questions

Does APRS work on this radio?

No, the UV-5RM Plus GPS radio does not have the APRS function yet. But this radio support firmware update and the Baofeng team will keep on improving the radio. Please stay tuned with us! 😉

Can’t make the GPS to work?

Please make sure the radio has been programmed with contacts: Find the Contacts in the CPS under MDC, and input the contacts list.Go to menu → Radio Setting → #21 ID Verification → Select a Contact for your radioGo to menu → GNSS → Turn on the GNSS → Select the correct Time Zone → Go into GPS Info → Turn on the Share position and Request PositionMake sure the radios you want to share position are all on the same frequency as your radio does (same CTCSS/DCS as well). Then your GPS should work properly.

p.s. The UV-5RM Plus GPS can only share locations with UV-5RM Plus GPS / 5RM GPS / 5RM PRO GPS / 5RH PRO / UV-5RM PRO GPS. And the radio can’t transmit or receive while sharing or checking location.

The radio cannot transmit or receive

Please check if your TX/RX frequency and CTCSS/DCS are correct. Additionally, distance and ANT may also affect the communication.

Cannot program the radio / Radio does not respond to the CPS

Please check if the cable is securely plugged in and the correct port is selected. If the issue persists, try a different USB port or another programming cable. The UV-5RM Plus GPS can be downloaded on baofengradio. com → Download Page under Sup port → find UV-5RM PLUS GPS

The radio you received seems to have flaws / Missing accessories / Need more assistance?

The radio comes with 18 months faulty return & replacement service and life-time sup port. For any issues or suggestions, feel free to get to our official support via baofengradio. com or click Sharkoo under the Buy Now button on this page and Ask a quesiton

Specifications

Receiver Frequency FM 76-108 MHz, AM 108-136 MHz, VHF 136-174 MHz, 220-260 MHz, UHF 350-390 MHz, 400-520 MHz Transmission Frequency VHF & UHF Channel Capacity 640 channels in total (each zone has 64 channels) Channel Spacing 25.0 KHz/12.5 KHz Input Voltage DC 7.4 V Operating Temperature -10 ℃ to 60 ℃ ANT Impedance 50Ω Frequency Stability ±2.5 ppm Modulation 16K0F3E/11K0F3E Rated Audio Power Output 0.75 Watts @ 16 Ω Connection for Accessories 2-pin Kenwood jack Dimensions 5.3 x 2.4 x 1.3 in / 135 x 63 x 39 mm Weight 10.2 oz / 290 g

Customer Reviews

3.9 out of 5 stars 51

4.3 out of 5 stars 161

4.2 out of 5 stars 134

—

4.4 out of 5 stars 1,130

4.9 out of 5 stars 25

Power
10W 10W 6W 10W 5W no data

TX Frequency Range
UHF VHF UHF VHF UHF VHF 1.25M UHF VHF UHF VHF no data

RX Frequency Range
UHF VHF AM FM 1.25M 1M NOAA UHF VHF AM FM 1.25M 1M NOAA UHF VHF AM FM 1.25M 1M NOAA UHF VHF AM FM 1.25M 1M NOAA FM UHF VHF no data

Battery Capacity
2500mAh 2500mAh 2600mAh 5200mAh 1800mAh 2500mAh

Type-C Rechargeable

✓

✓

✓

✓
no data

✓

Memory Channel
640 (10 Zones) 999 999 999 128 no data

One-Key Frequency Copy

✓

✓

✓

✓
no data
no data

Menu Programmable Side Keys

✓
no data

✓
no data
no data
no data

GPS

✓
no data
no data
no data
no data
no data

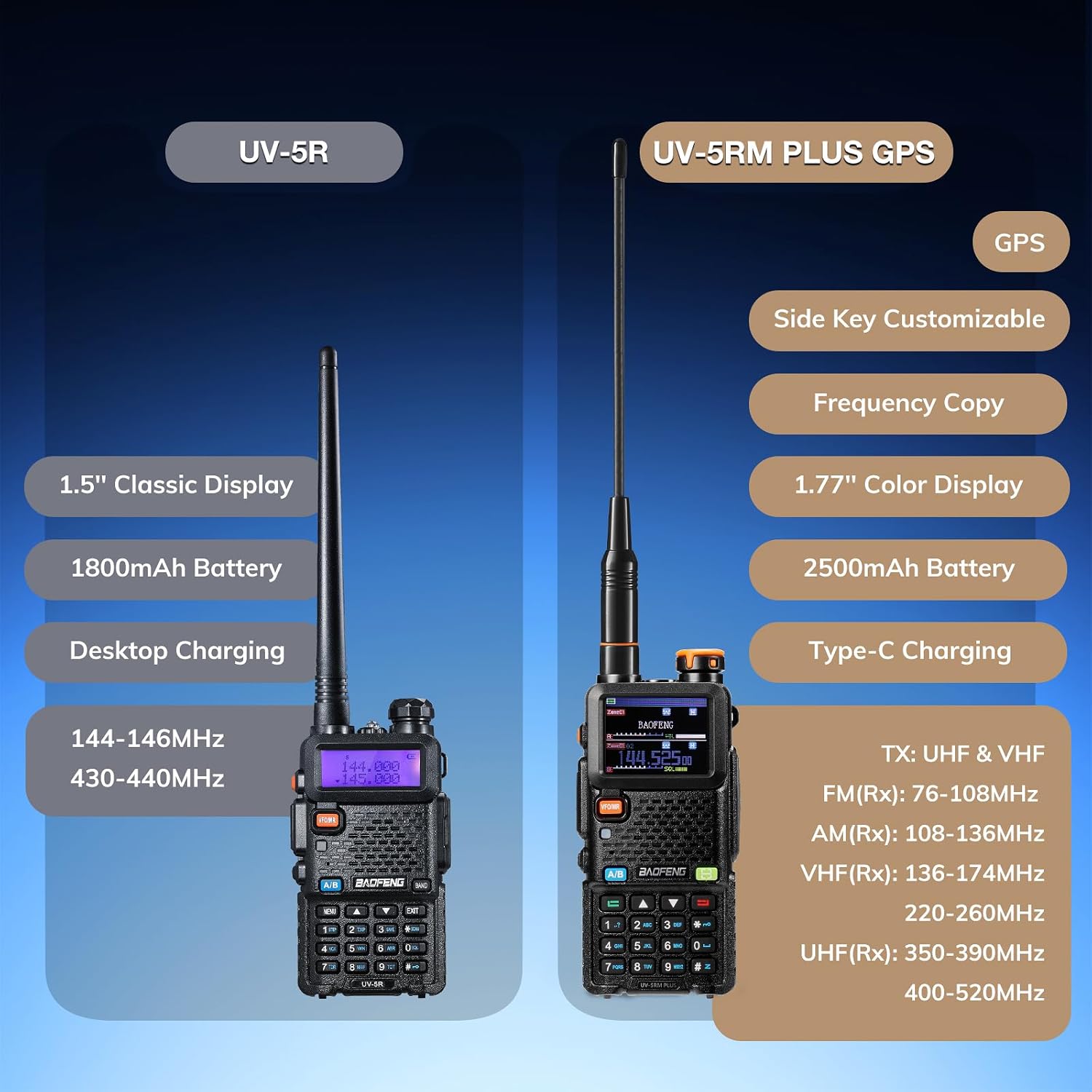

New Version: UV-5RM PLUS GPS brings you ① expanded frequency coverage, including Airband, FM, and NOAA bands, ② GPS functionality, ③ one-key frequency copy, ④ a 2500mAh battery with USB-C charging, ⑤ 10W power output, and ⑥ a larger 1.77” color display for improved readability. FCC ID: 2AJGM-5RHPRO
GPS Functionality: Utilize GPS to check and share your position, request your teammates’ locations, and access detailed data such as longitude, latitude, and altitude. The integrated radar map allows you to track direction and distances to fellow adventurers, boosting safety during outdoor activities like hiking and camping
Long-Lasting Battery: Equipped with a 2500mAh rechargeable lithium-ion battery and Type-C charging for faster, more convenient recharging, ensuring your radio stays operational for extended periods without battery worries
640 Channels, 10 Zones: Manage complex communications effortlessly with up to 640 channels across 10 customizable zones. allowing you to easily tailor your communication needs with flexible channel management
User-friendly Features: The 1.77″ color screen delivers a vibrant, easy-to-read display, while 2 customizable side keys give you instant access to your favorite functions. Effortlessly scan through zones, frequencies, and CTCSS/DCS to quickly tune in and connect with the right channels, making your communication smoother and more efficient

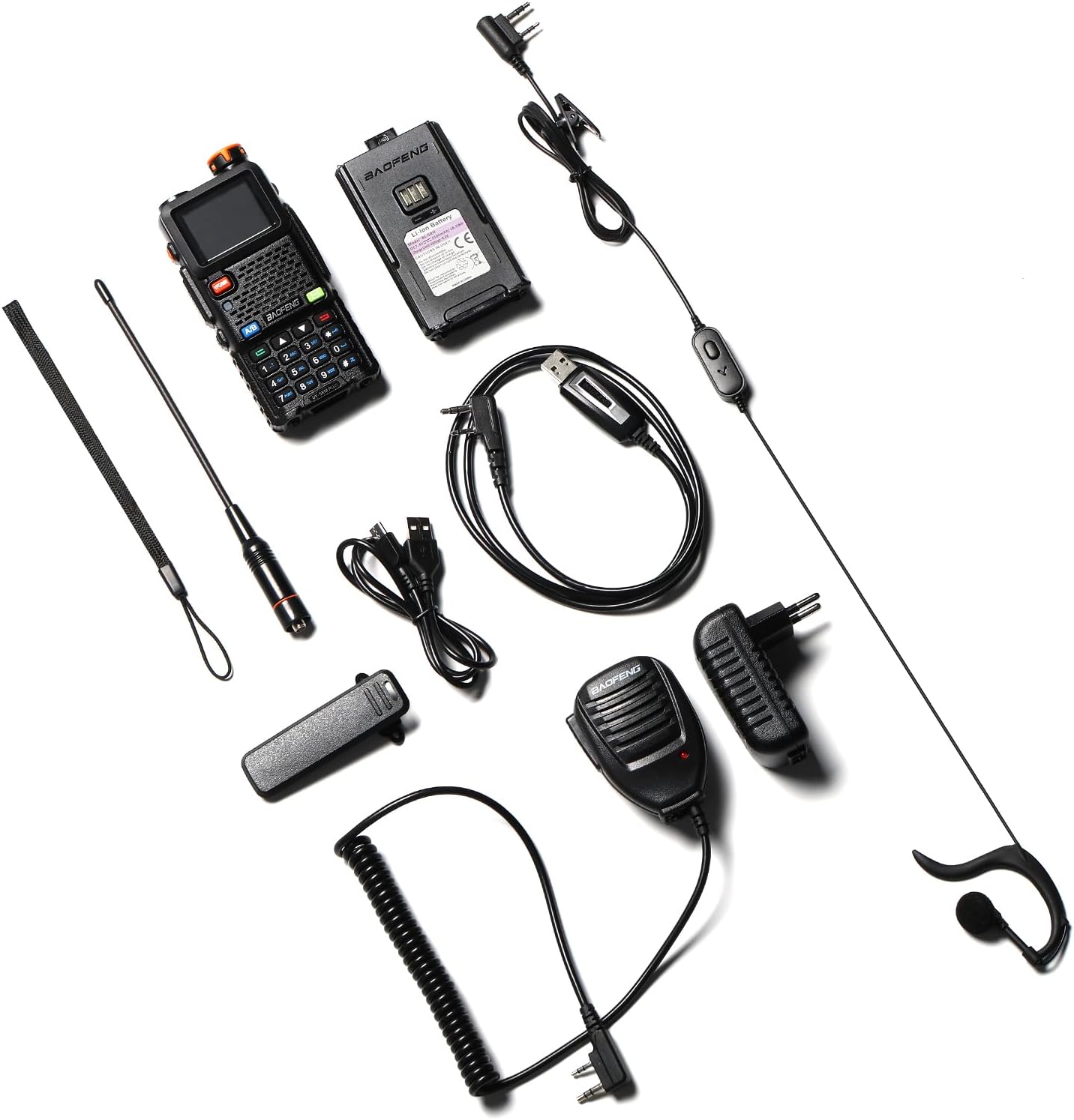

All-in-One Full Kit: This complete package includes everything you need for immediate use. Unpack and enjoy hassle-free communication right away, perfect for outdoor adventures or emergency preparedness! 1 x UV-5RM PLUS GPS Radio, 1 x 2500mAh Li-ion Battery, 1 x Speaker Mic, 1 x Programming Cable, 1 x Headset, 1 x Belt Clip, 1 x Wrist Strap, 1 x Type-C Charging Cable, 1 x Adapter & User Manual
