500V 2-Pole 32A DC Mini Circuit Breaker for Solar PV Systems

Product description

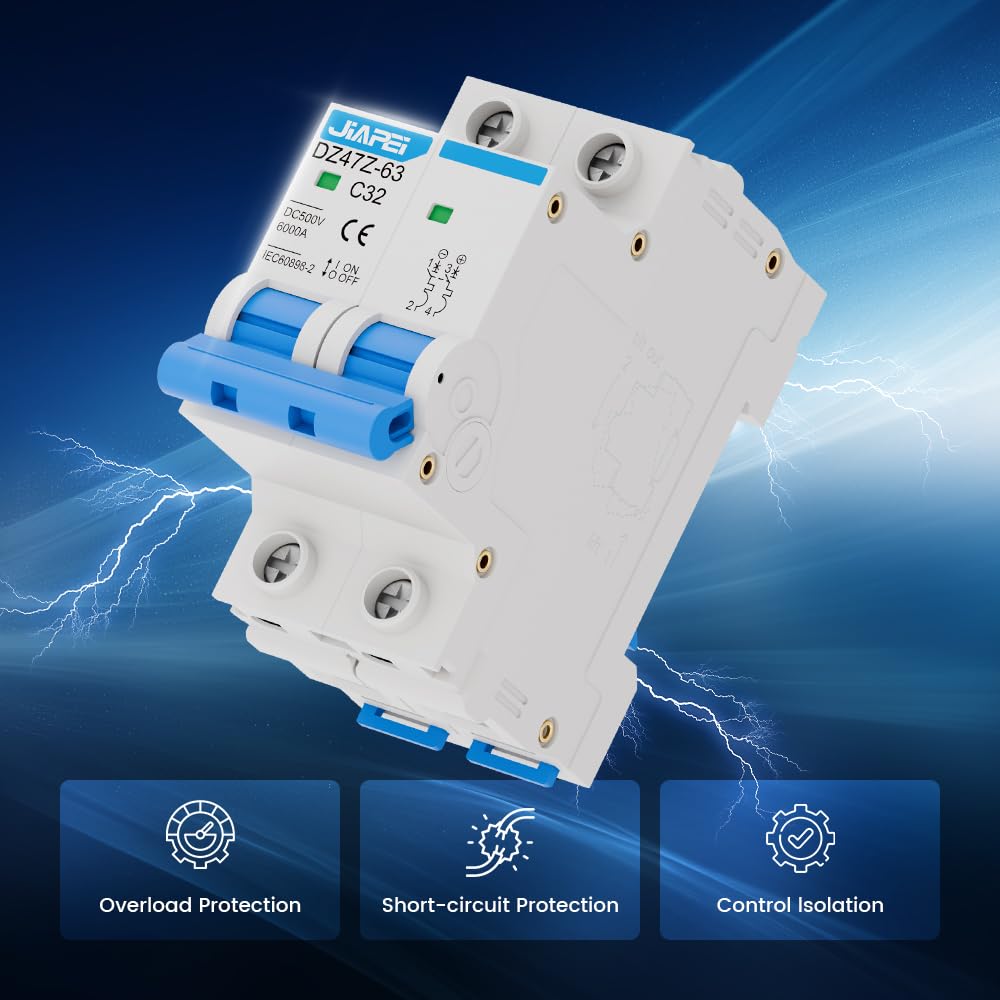

CNJIAPEI DC Miniature Circuit Breaker

Observe Polarity: Ensure proper polarity alignment during installation.

Choose the Right Wire Size: Select wiring that matches the rated current for optimal performance.

DC Miniature Circuit Breaker 2P 32A 500V

Material: ABS plastic , Metal , Copper

Rated Operational Voltage:500V

Rated Current:32A

Poles：2

Uimp：4kV

Breaking Capacity：6kA

Standard:IEC60898-2

Package Contents 1× 2 pole 32A 500V DC Circuit Breake 1×35mm din rial 2×screw

High-Quality Solutions for Electrical Safety

Indicator Window

Stay informed at a glance and avoid misoperation. The green indicator signals a power-off state, while the red indicator shows the circuit breaker is active.

Built-In DIN Rail

Comes with pre-included DIN rails for hassle-free installation—no need for additional purchases.

Flame-Retardant Construction

The housing is made from high-temperature, flame-retardant material, offering exceptional fire resistance and ensuring enhanced safety.

Installation

DIN Rail Installation

Ensure the 35mm DIN rail is securely mounted horizontally in a stable location.

Installation Steps

1.Hook the top slot of the circuit breaker onto the DIN rail.

2.Press the bottom of the circuit breaker firmly into place on the rail.

Removal Steps

1.Push the circuit breaker upward to release it from the rail.

2.Tilt the top of the circuit breaker outward to fully detach it from the DIN rail.

Product Name DC Miniature Circuit Breaker 500V 32A Rated Operational Voltage DC 500 V / 1000 V (optional) Rated Current [In] 10 A / 16 A / 20 A / 25 A / 32 A / 40 A / 50 A / 63 A (optional) Poles 2P Package Includes 1 x DC miniature circuit breaker, 1 x DIN rail, 2 x screws Mounting Support 35mm DIN rail Operating Temperature -13°F(-25℃) ~ 140°F(60℃) Mechanical Durability 10000 Cycles Electrical Durability 2000 cycles Tightening Torque 2.5 N.m Standard IEC60898-2 Uimp 4kV Breaking Capacity 6kA Ics=Icu

Reliable Protection: Designed to safeguard power distribution systems against overloads and short circuits, while also serving as a control and isolation device.
Instantaneous Tripping: Features an electromagnetic trip mechanism that ensures immediate circuit disconnection during a short circuit, enhancing system safety.
Advanced Arc Extinguishing: Equipped with a magnetic system specifically engineered to tackle the challenges of DC arc extinguishing, which is more demanding than AC systems.
Versatile Applications: Ideal for use in DC power systems, marine electrical systems, solar photovoltaic setups, and other DC-based environments.
Effortless Installation: Supports 35mm DIN rail mounting with screw clamp wiring, ensuring quick and secure installation.
