200W Foldable Solar Panel – Waterproof, USB Output, Adjustable Kickstands for Camping & RVs

Product description

KWAFOO 200W Portable Folding Solar Panel For Your outdoor Life

KWAFOO 200 Watt Portable Folding Solar Panel is a reliable, light weight and easy use portable folding solar panel.

Made from 23% high efficiency Mono Crystalline solar cell, with reliable ETFE material coating, make it water and dusts proof.

Equiped with MC4 output connector, 4 in 1 charging adapter cable, and digital output box with USB-A and USB-C connector, no matter to charge your portable power stations or USB devices like mobile, pad etc., or even 12V RV batteries via a PWM/MPPT solar charge controller, KWAFOO 200W Portable Folding Solar Panel make these functions all covered.

With the Magnetic design handle and adjustable Kickstands, KWAFOO 200W Portable Folding Solar Panel make it super easy to carry and get the Max.

Power output to make your portable power supply on the go!

Meeting all your outdoor charging needs, quite versatile for car camping, beach trips, or even just a day trip where you need to power basic electronics.

CAMPING

Solar-powered chargers have increased in popularity over the past years and have become smaller, lighter and portable.

​These units are a good option for backpackers and campers who are going to be off the grid for longer than a couple of days as, as long as the sun is out, you can keep things charged.

RV TRAVEL

Having Kwafoo portable solar panels eliminates to charge batteries with an external power outlet or the need to use external diesel generators.

Whether you just want to keep your phone charged or plan on bringing your favorite gadgets that use electricity, it’s completely possible to find a solution.

BALCONY SOLAR SYSTEM

Did you know you can put solar panels on a balcony?

Having solar panels on your balcony helps with: ​Reducing your reliance on fossil fuels. Cutting down your energy bill. Feeding power back into the grid. Possibly improving your property’s value.

MARINE

This charging power replenishes the energy drained by fridges, lights, stereos, inverter loads, wash-down pumps etc. This natural charging cycle means that your battery bank is never depleted, you can stay on your boat away from shore power for indefinite periods of time, using all of your on-board electronics freely without worrying about battery drain.

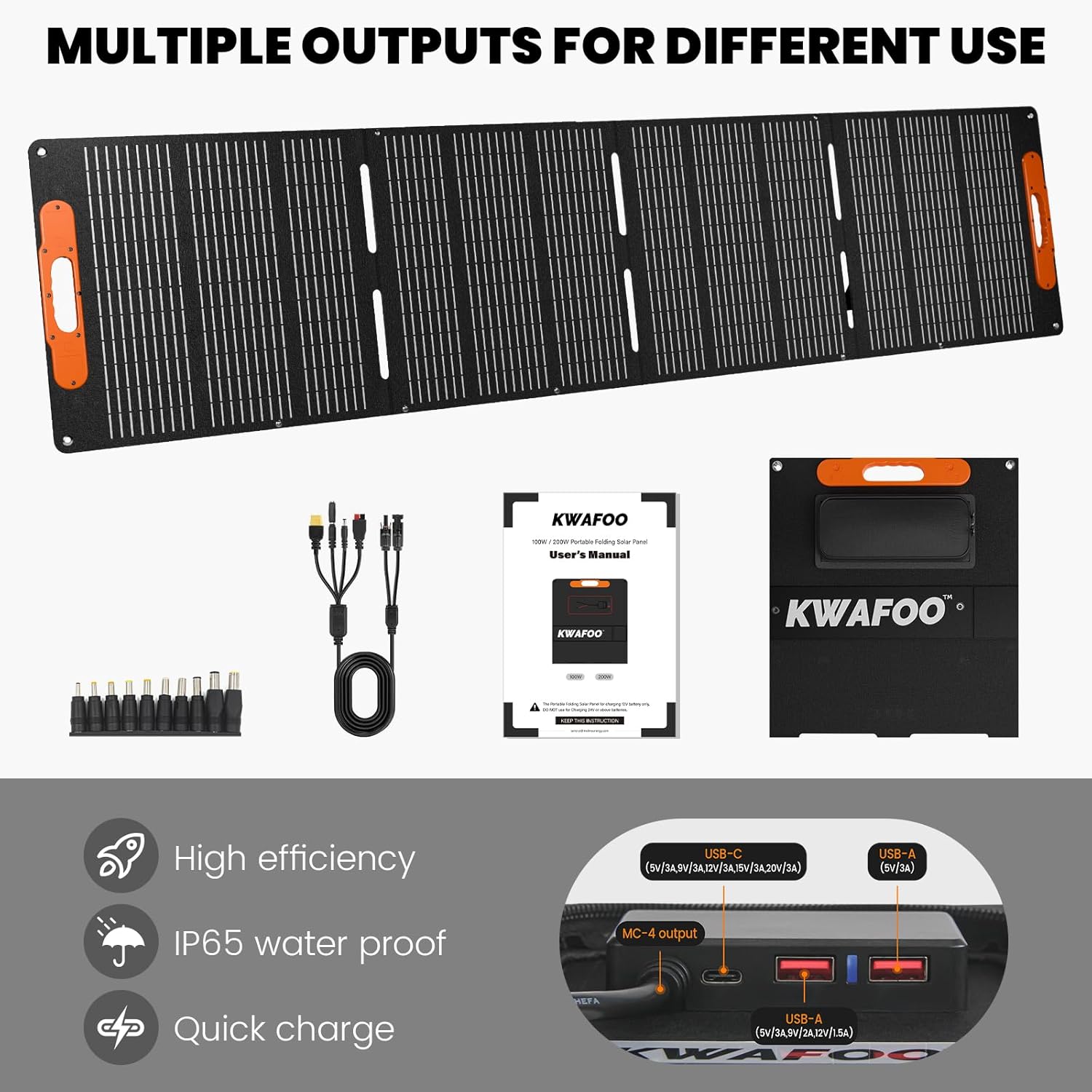

Multiple Outputs and Wide Compatibility

How to connect and charging the devices?

(1) Charging the Power stations via MC4 cable

Some of the power stations coming with solar charging cable with MC4 connector on one end and the other end with solar charging adapter, customer can use this cable connect with MC4 cable on solar panel direct to charge the power stations.

(2) Charging the Power stations via 4 in 1 cable

* Before purchasing, Please check and make sure the KWAFOO 100W /200W voltage (12V-20V) are within the device input voltage range when charging the Power Stations.

MC-4 to DC5.5*2.1mm adapter for Rockpals 250W/350W/500W, FlashFish 200W/300W, PAXCESS ROCKMAN 200W/300W/500W, PRYMAX 300W

MC-4 to Anderson adapter for Jackery Explorer 1000, ROCKPALS 300W,Ecoflow

MC-4 to DC7.9*0.9mm adapter for Jackery Explorer 160/240/300/500/1000, Goal Zero Yeti 160/240/300, Anker 521 Power Station, BLUTTI EB 240, GRECELL 300W/500W/1000W

MC-4 to XT60 adapter for Ecoflow RIVER/RIVER 2/MAX/Pro/DELTA

Meanwhile, there is a complimentary 10 in 1 DC adapter DC5521(Female) to DC6544/6330/5525/5521/5517/4817/4017/35135/7450/7955(Male) to expand the folding solar panel’s compatibility.

(3) Charging the devices (Mobile phone ,Tablelet ,Drone ,Camera etc…) via USB-A and USB-C

The 2 USB-A port and USB-C port can be used to charge the digital devices easy. 1 USB-A port (5V/3A,9V/2A,12V/1.5A) and the USB-C Port (5V/3A,9V/3A,12V/3A,15V/3A,20V/3A) are fast charging port ,which can allow you charging the devices high efficiency.

(4) Charging the 12V battery

The KWAFOO 100W Portable folding solar panel also can be used to charge the 12V batteries (LiFePO4 ,AGM, WET ,GEL etc.. ), please make sure to use a PWM or MPPT solar charge controller (Not include, need to buy separately) between the solar panel and battery to avoid damage to the battery.

Durable and Waterproof

With Long-Lasting ETFE coating, the KWAFOO 100W folding solar panel is a IP65 water and dusts proof products with much longerlife than PET coating folding panel.

Portable and Foldable

Discover the perfect balance of power and portability with our folding solar panel, no matter you are camping,fishing or on a RV trip with your family,this folding solar panel should be an ideal choice

Plug and Play Easy Use

No matter you use our folding solar panel to charge your power stations or USB devices, the only thing need to do is : open and face it to the sunlight and plug in , and then get sufficient green power go

Portable ,Foldable and Easy Setup, you can carry it wherever you go.

Our 200w travel solar panel only weighs 17.42 lbs,the folded size is 25*22.2*197 inches and it comes with a magnetic handle for easy carrying around. Equipped with 3 kickstands, the portable solar panels for RV can be firmly placed on the ground.Within a few seconds you can easily adjust the foldable solar panel’s angle to optimize sunlight absorption and set it up to efficiently harness solar energy.

What’s in the box?

1 x 200W folding solar Panel

1 x 2M 4 in 1 MC4 to TX60 cable

1 x 10 in 1 charging adapter

1 x User’s manual

FAQ about KWAFOO 100W/200W Portable Folding Solar Panel

Q1: Does the 100W/200W Folding Solar Panel generate the full 100W/200w of power under sunlight?

A1: In most cases, the folding solar panel can not deliver its full rated power. The reason is the rated Power given in specification is tested in the lab under a controlled standard testing condition (STC ). In real use under sunlight, the output will normally lower than the rated power and affected by following factors:

a. Sunlight Strength. The Sunlight strength will affect the power output directly, the stronger of the sunlight is, the more power will can get from solar panel.

b. Solar Panel Angle to Sunlight, we always suggest keep the solar panel 90 degrees to the sun in order to get the Maxium output.

c. Possible shadow or dusts on solar panel. The shadow by tree or dusts on solar panel surface may make the solar panel output lower, so we should try to keep solar panel surface clean and put in in the area without shadow.

d. Solar Panel Temperature. The higher of the temperature is, the lower of the output will be.

Q2: How many watts does the 100W/200W folding solar panel can generate under normal condition?

A2: The solar panel output may high depends on the weather conditon. Under good sunlight without shadow, the solar panel should can generate around 70% to 90% of the rated power according to our testing experience .That means a 100W folding solar panel may come with 70W to 90W output under good sunlight , and 200W folding solar panel may have 140W to 180W .

Q3: Why my electronic deviceS charging slow or not charge with the folding solar panel?

A3: The charging very slow or not charging may caused by following reasons:

a. The solar panel not produce or produce very small electricity due to Sunlight not strong enough or surface not clean or solar panel been coverd by shadow.

b. Cabling not correct may cause no charging, try to correct the cabling or reconnect again may can fix this problem.

c. Device been protected , and stopped the charging , the reason may because the device over heating under sun light , or the device setting not allowed charging by our solar panel voltage .

Q4: Does the rain will damage the folding solar panel?

A4: The KWAFOO 100W /200W Folding Solar Panel are IP65 water proof, so the rain will not damage the solar panel. But meanwhile, the Digital USB output box inside the pocket is not water proof, so we don’t suggest to put the solar panel under rain or in the water and we should ensure the USB output box remain in dry condition before every time use.

Q5: Could I connect 2pcs of folding solar panel in parallel or series for charging?

A5: Yes, if you purchased 2pcs the KWAFOO 100W /200W folding solar panel, you can connect them in series or parallel to charge the devices.

Series connection method: connect the male MC4 connect from 1 panel to the other panel Female MC4 connector.

Parallel connection method: connect the 2 folding panels Males MC4 connector together, and connect the 2 Females MC4 connector on the 2 panels together. a Y MC4 connector (not included in our folding panel ) will be helpful in parallel connection for 2 folding solar panel.

Efficient Power Conversion: Innovative PERC Monocrystalline solar cell technology and ETFE material makes the conversion rate of the solar panel up to 23%. You won’t worry about if the solar panel output is not continuous causing the heating system to stop working or troubles like this. Kwafoo 200W solar panel portable is designed to harness maximum solar energy, ensuring optimal power generation even in challenging conditions.
Foldable and Portable: Foldable solar panels that are designed to go wherever life takes you. Ideal as an RV solar panel, camping solar panel and outdoor panel. The folding solar panel is also lightweight, easy to set up, and the case , making it a great addition to any outdoor adventure or emergency kit. It recharges not only with solar but cig lighter or just plugging it in at home.
Plug and Play Easy Use: 4 in 1 MC4 extension cable, 10 in 1 charging adpater, dual USB-A & One USB-C ports meet most of your outdoor charging needs. No matter you use our folding solar panel to charge your power stations or USB devices, the only thing need to do is: open and face it to the sunlight and plug in, and then get sufficient green power go.
Easy setup and Kickstand inclued: Having the extendable legs makes it nice for be able to set up on table top without having to find something to prop panel up, and the super slim design, is awesome for saving space. It’s a rather portable power station for outdoor activities lover. You can take it on camping trips and it’s held up well, while also working indoors.
Duarable and Waterproof: The ETFE-laminated case is durable enough to extend the lifespan of the solar panel. It is IP65 water-resistant that will protect from water splashing (Do not place it under the rain, or to soak in water). The zippers on the pocket can hold the power cords, and cover the power port. KWAFOO portable folding solar panels are made for the outdoors and can withstand the elements.
Magnetic Handle Design: To ensure a hassle-free use for our folding solar panel, the handle of our folding solar panel been designed with magnets inside .You can easily open it or fold it back no matter go outside for camping ,fishing or RV Travelling.
